2017 New Style Bicycle Alloy Pedal - 17TR Oversized pulley wheel System – Kactus Sports Detail:

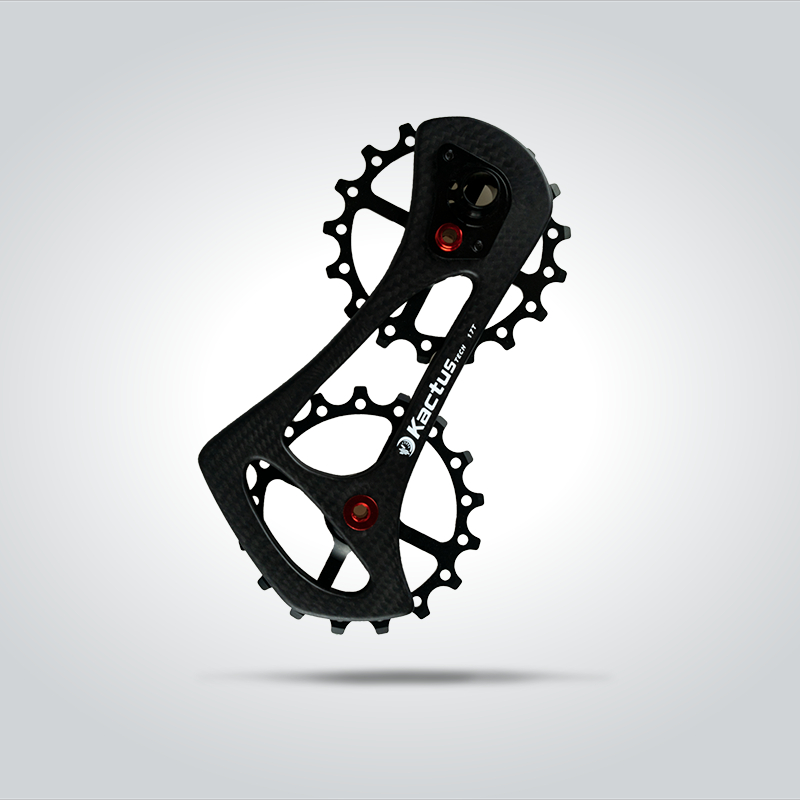

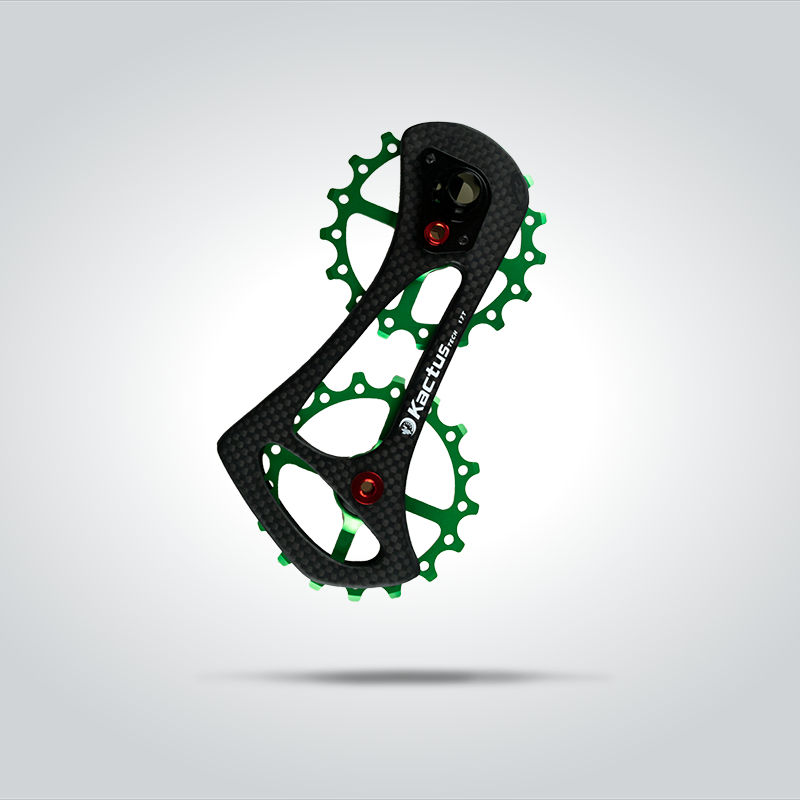

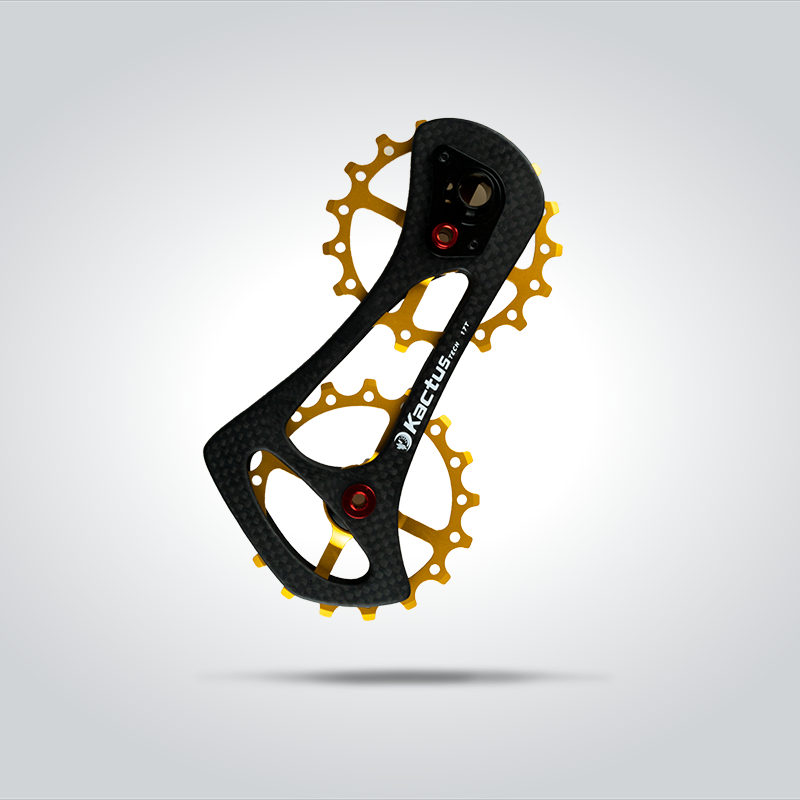

17TR Bicycle Ceramic Bearing Carbon fiber Jockey Pulley Wheel Set Rear Derailleurs Guide Wheel

b161a3b7

Product description

*17T large size guide wheel set system

*Saves 60% chain friction resistance compared to 11T guide wheels”

*Ceramic bearing version saves more than 2.4 watts of average power compared to the original shifting system

*Full carbon fiber cage

*Full 7075 aluminum alloy CNC cutting lightweight guide wheel and shaft pin

*17TR is suitable for Shimano 6800/6870/9000/9070 Ultegra/DURA ACE

*Ceramic Bearing Version Stainless Steel Hybrid Bearing Version Steel Bearing Version

*Weight: 61.4g

*he ceramic Bearing version is 1.2 grams lighter than the steel Bearing version

Product Information

Components	Derailleurs
Gears	21 Speed
Place of Origin:	Shenzhen, China (Mainland)
Color:	Customized
Weight:	61.4g
Rear Derailleur:	Bike Part
Type:	Rear Derailleur
Compatibility	Shimamo Derailleur System
Material:	Carbon Fibre
Size:	standard
Application:	Bicycle Rear Derailleur Pulley

Why replace derailleur pulley wheel

Firstly, porous spring position limit could adjust back tension largely, improve the weakness of original weak stretch, and make the up and down chain tension between guide wheel and cogs much more adequately.

Secondly, the contact tooth number or control tooth number between chain and cogs of rear derailleur 17T is more during gear shifting, it just like to pinch the middle and two sides of some sticks, the larger the control lever, the stronger the control power.

Lastly, after redesign the cage’s rotation curve, the distance between upper guide wheel and the cogs is improved.

Installation steps

1. Rear derailleur decomposition, remove the original pulley wheel cage, as shown in the figure (original pulley wheel cage has been removed, removal method please refer to figure No.20)

2. Please confirm the aluminum alloy ring different side surface.

3. The main bolt gasket.

4. Install the nylon washer to the rear derailleur.

5. Mounting the main bolt gasket in the bolt, and apply grease.

6. Take the 17T carbon fiber pulley wheel cage, use No. 2 hex wrench remove alloy screw out on the back of the pulley wheel cage.

7. Remove upper pulley wheel.

8. After removing the upper pulley wheel, install the center bolts on the back.

9. Before installation the main bolt, the bolt should be fully greased.

10. Push the main bolt fully in the base of the pulley wheel cage.

11. Please confirm the alloy ring groove surface into the main bolt, and groove surface has greased.

12. Please confirm the alloy ring plane outward, and the alloy ring has greased.

13. Please confirm the spring mounting hole in rear derailleur.

14. The spring pin alignment spring mounting hole into the rear derailleur.

15. Confirm the spring pin into the base of the spring positioning hole.

16. Install the spring.

17. Aligned the spring pin with the hole on the pulley wheel cage

18. Marked in 1 to 4 is tension adjustment hole, the default initial mounting is hole 2. (tension: 4>3>2>1)

19. The pulley wheel cage fully pressed into the rear derailleur. confirm the main bolt alignment.

20. No. 4 hex wrench to tighten the main bolt to 4N.m.

21. Reset the upper guide wheel, insert the upper pulley bolts, but not tightened.

22. Rotating the pulley wheel cage to rear derailleur rebound limit block, press the topupper pulley wheel bolt out, blocking the limit block.

23. Tighten the upper pulley wheel bolt.

24. The installation is complete.

Product detail pictures:
